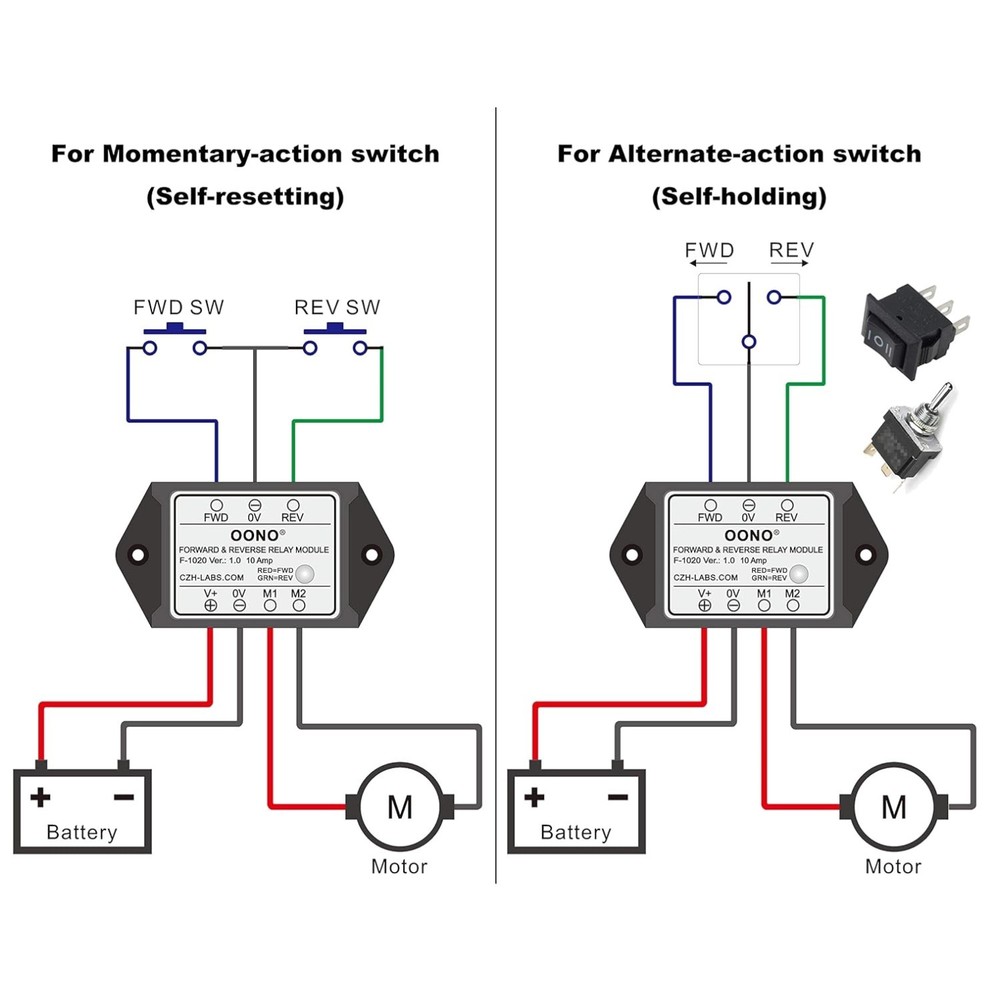

DC 12V Reversing Relay Module for Motor/Actuator
USD 31.15 USD
Specifications
| Wattage | 125 Watts |
| Contact Type | Normally Open |
| Maximum Switching Voltage | 15 Volts |
| Suitable For | Interior, Exterior |
| Unit Type | Unit |
| Number Of Pins | 3-Pin |
| Connector Type | Screw |
| Style | Dc 12v |
| Maximum Switching Current | 10 Amps |
| Contact Current Rating | 10 Amps |
| Specification Met | Energy |
| Mounting Style | Surface, Bench, Bolt-On |
| Maximum Amperage | 10 A |
| Minimum Switching Voltage | 10 Volts (dc) |
| Current Rating | 10 A |
| Mounting Type | Surface Mount |
| Coil Resistance | 10 Ohms |
| Operation Mode | Automatic |
| Brand | Unbranded |
| Type | Reversing Relay Module |
| Coil Voltage | 10-15 V |
| Power | 125 watts |
A nice touch is the smooth spring action inside this unbranded relay, which feels reliable without being too stiff.
